Question

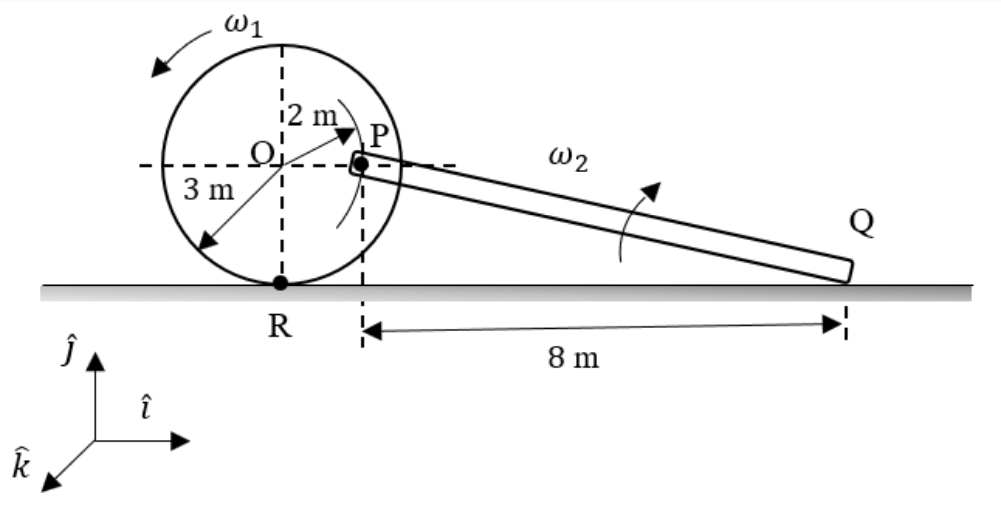

The figure shows a wheel rolling without slipping on a horizontal plane with angular velocity 𝜔₁. A rigid bar PQ is pinned to the wheel at P while the end Q slides on the floor. What is the angular velocity 𝜔₂of the bar PQ?

Options :

𝜔₂ = 2𝜔₁
𝜔₂ = 𝜔₁
𝜔₂ =0.5𝜔₁
𝜔₂ = 0.25𝜔₁
